2015 Yamaha Raider Horsepower

2015 Yamaha Raider Horsepower

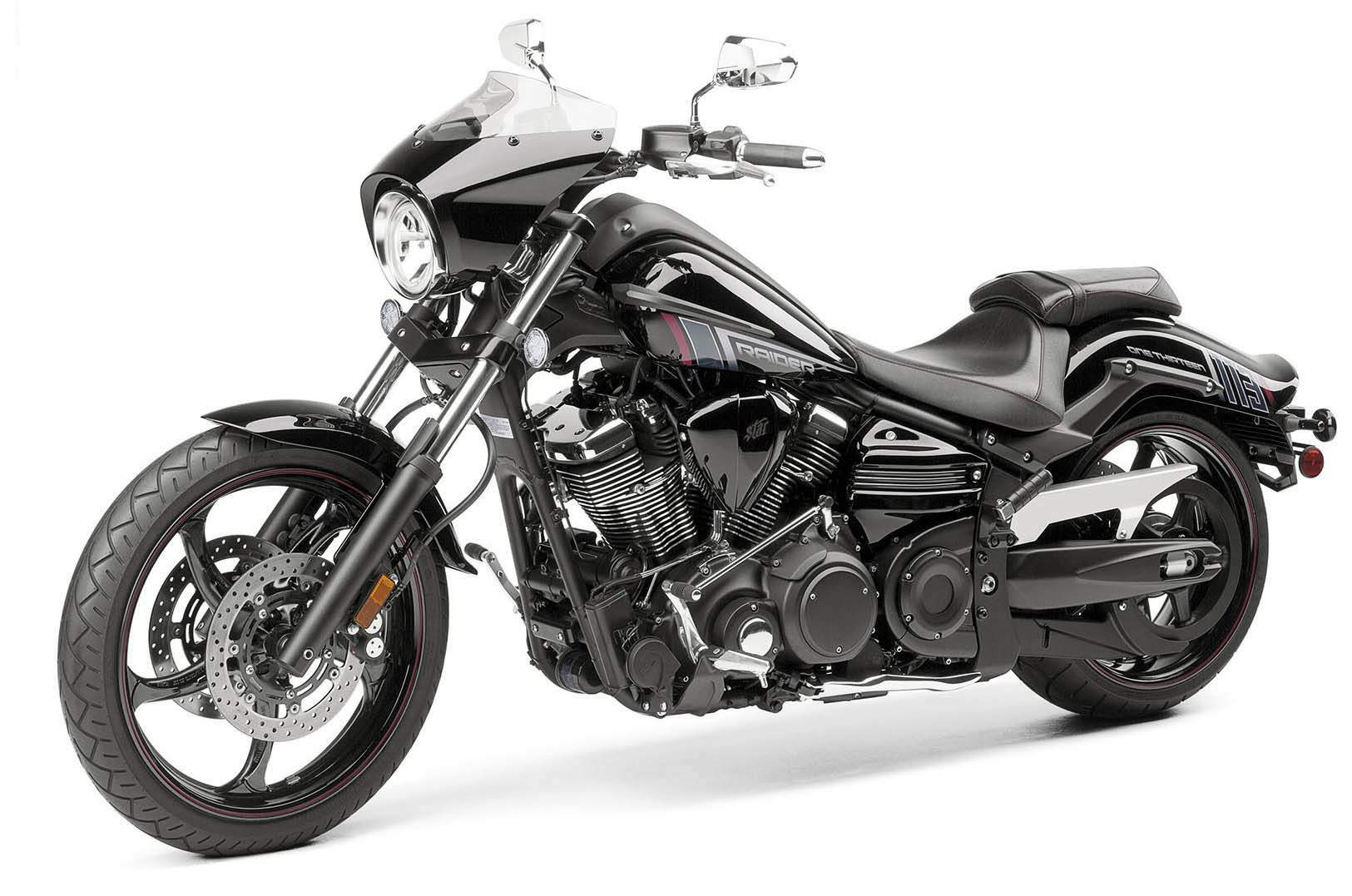

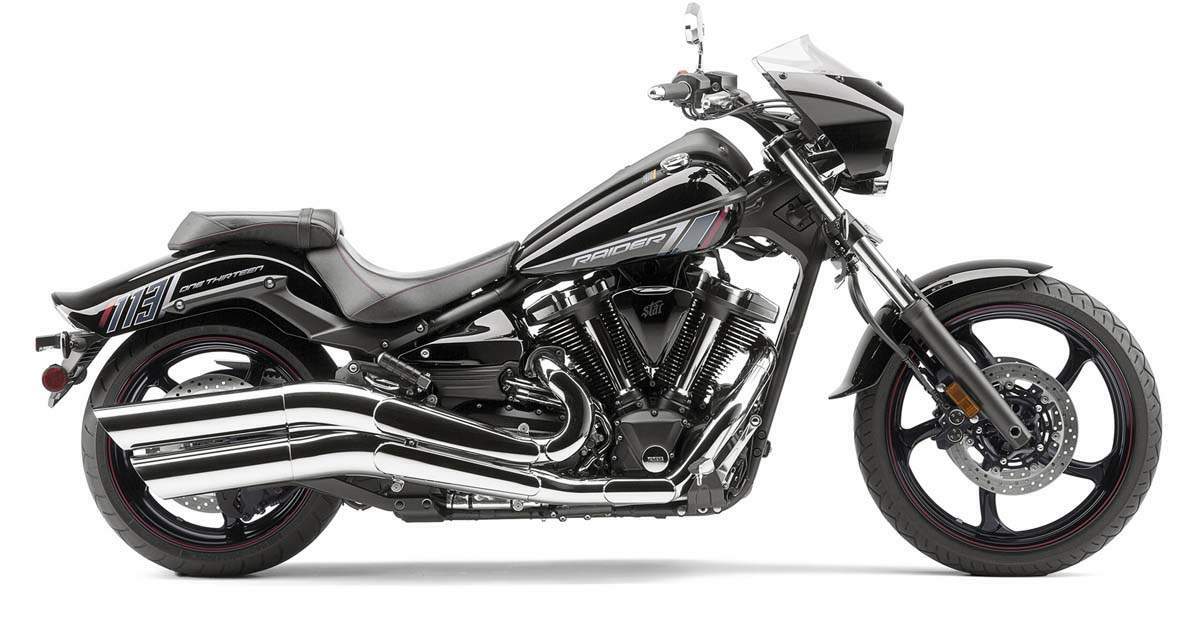

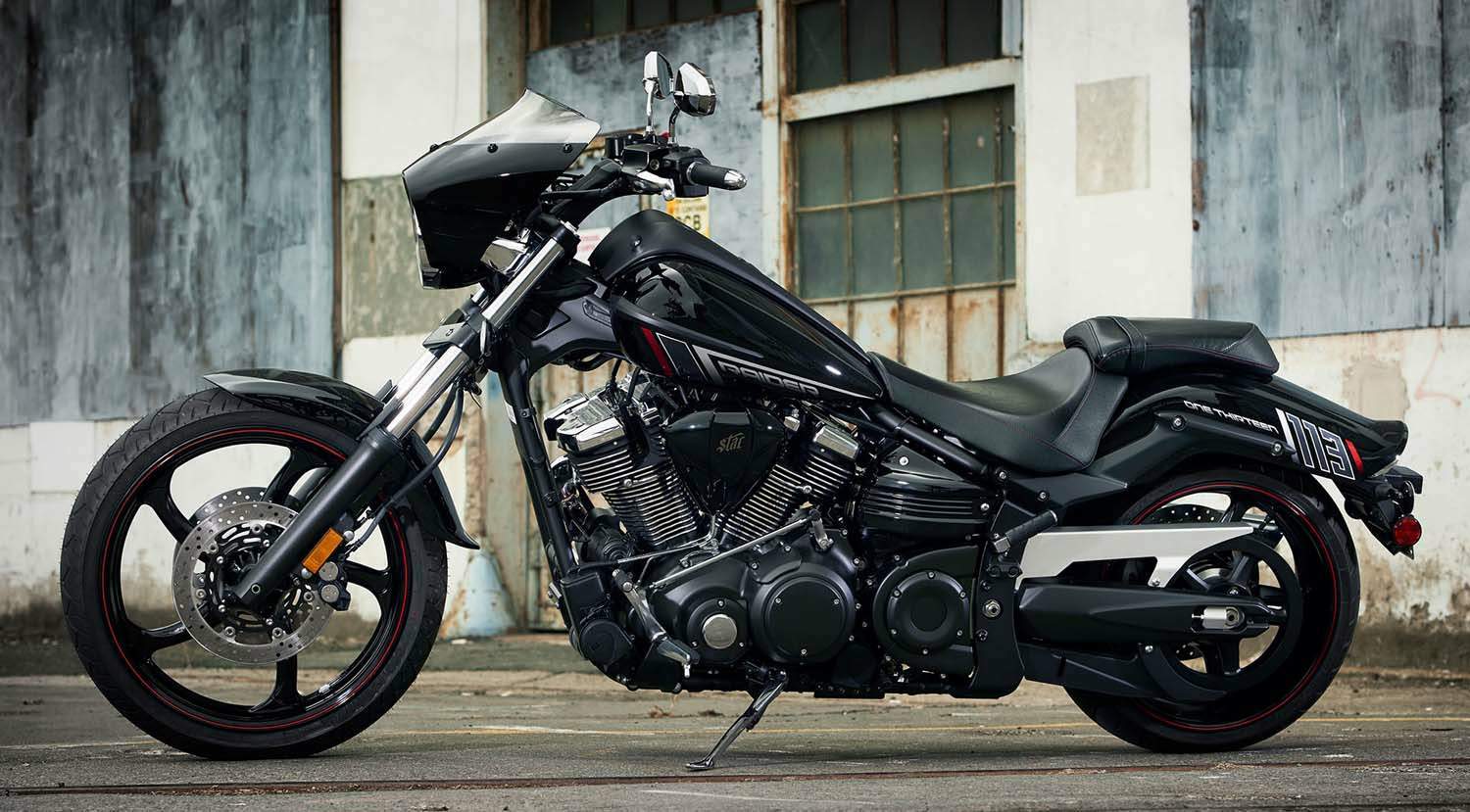

Yamaha Star Raider Bullet Cow

Make Model	Yamaha Star Raider Bullet Cow
Year	2015
Engine	Four stroke, 48� V-Twin cylinder, SOHC, 4 valves per cylinder.
Capacity	1854 cc / 113 cu-in
Bore x Stroke	100 x 118 mm
Cooling System	Air cooled
Compression Ratio	9.5;1
Induction	Twin-bore fuel injection (FI)
Ignition	Electronic control unit (ECU)
Starting	Electric
Max Power	73,6 kW 100 hp @ 4.250 rpm
Max Torque	167,8 Nm 17,1 kgf-m @ 2.500 rpm
Transmission	5 Speed
Final Drive	Belt
Front Suspension	46 mm Telescopic fork
Front Wheel Travel	320 mm / 5.1 in
Rear Suspension	Adjustable link Monocross
Rear Wheel Travel	88.9 mm / 3.5 in
Front Brakes	2x 298 mm discs
Rear Brakes	Single 310 mm disc
Front Tyre	120/70-21
Rear Tyre	210/40R18
Dimensions	Length  2570mm / 101.2 in Width   925 mm / 36.4 in Height  1165 mm / 45.9 in
Wheelbase	1800 mm / 70.9 in
Seat Height	695 mm / 27.4 in
Ground Clearance	145 mm / 5.7 in
Wet Weight	333 kg / 734 lbs
Fuel Capacity	15.8 Liters / 4.2 gal

The world�s ultimate midsize chopper-inspired custom, now with a new bold aerodynamic bullet cowl with a hint of outlaw that provides full coverage to eliminate wind fatigue...

The New Raider Bullet Cowl offers everything that makes the 2015 Yamaha Raider the world's premier chopper-inspired performance cruiser, and ups the ante. With a new aerodynamic cowl and a hint of outlaw styling providing full coverage to eliminate wind fatigue with allowing unobstructed views of the road. And with 113 cubic inches of air cooled, fuel injected V-Twin power below, there's virtually no limit to where the road can take you.

Features

Top Features:

NEW FOR 2015! Raider Bullet-Cowl offers a tougher look and excellent wind protection.
�The Raider was inspired by the custom chopper movement, but since it�s a Star, it had to also handle, stop and go.
�A 6-degree yoke angle�the first ever on a Star Motorcycle�makes it possible to achieve that custom raked-out look as well as neutral handling and straight-line cruisability: 33-degree rake plus 6 degrees yoke angle gives total rake of 39 degrees and 102mm of trail.
�Custom 5-spoke wheels carry a 120/70-21-inch bias tire up front, and a wide, 210/40-18 radial out back�the tallest and widest ever on a Star.
�Estimated 42 mpg* means this cruiser can go the distance between fill-ups.

Engine:

�113-cubic-inch (1854cc) air-cooled, OHV with 4 valves per cylinder, pushrod 48-degree V-twin pumps out max torque at just 2500 rpm and max power at 4500 rpm for powerful, relaxed cruising.
�Four pushrod-activated valves and two spark plugs per cylinder provide optimum combustion efficiency along with classically beautiful engine architecture.
�Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. Provides outstanding reliability and longer engine life.
�9.5:1 compression ratio and aggressive cam timing increase power output across the board.
�Computer-controlled, twin-bore fuel injection monitors multiple engine parameters to calculate perfect mixture under all conditions; wide-angle 12-hole fuel injectors provide excellent atomization.
�A 3.5-liter airbox is hidden in the area below the fuel tank for great performance and clean styling.
�Two-into-one-into-two exhaust with Exhaust Ultimate Power valve (EXUP�) inside boosts torque in the 2500-3500-rpm range.
�Special custom-machining of the cooling fin edges gives a jewel-like appearance to the engine as light hits it from different angles.

SUSPENSION:

�All-aluminum cast frame is light, rigid and tuned for light, athletic handling. A light, Controlled-Fill, aluminum swingarm casting complements the bike�s lithe style.
�Low, sculpted seat holds the rider in place, and pullback bars reach back to enforce a casual, urban cruising style.
�A 6-degree yoke angle�the first ever on a street-legal Star Motorcycle�makes it possible to achieve that custom look as well as neutral handling and straight-line cruisability: 33-degree rake plus 6 degrees yoke angle gives total rake of 39 degrees and 102mm of trail.
�Custom 5-spoke wheels carry a 120/70-21-inch bias tire up front, and a wide, 210/40-18 radial out back�the tallest and widest ever on a Star.
�46mm fork tubes serve a sweet appearance and an excellent ride through 5.1 inches of wheel travel.
�A tucked-out-of-sight single shock out back provides a smooth ride under varying loads.
�Flangeless fuel tank carries a full 4.2 gallons of fuel.
�Front brake master cylinder with integrated lever operates a pair of 298mm front discs squeezed by strong monoblock calipers for excellent power and feel, with a 310mm disc out back.
�Strong, light and narrow belt final drive contains embedded carbon fiber for even greater strength.
�Wiring harness uses super-slim wires for compactness and lighter weight, and switchgear wiring is routed inside the handlebar for a clean appearance.

Additional Features:

�Left-thumb operated high-beam switch, and right-thumb activated accessory driving light switch for great visibility.
�Jewel-like fit and finish, and Star quality paint, chrome and attention to detail are evident all over the Raider.
�Cool, tank-mounted instrumentation complements the custom look, and contains analog speedometer and fuel gauge, along with twin digital tripmeters, odometer and self-diagnostics.
�Bright multi-reflector headlight, LED taillight, and custom amber LED turn signals behind clear lenses give a custom look.
�02 sensor and three-way catalyst reduce emissions.
